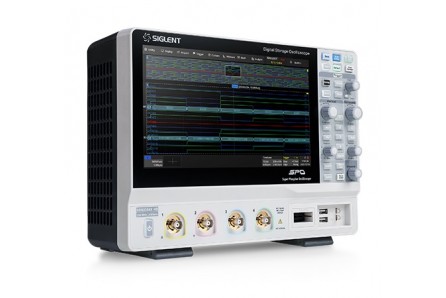

Siglent Technologies SDS2000X HD

Siglent Technologies SDS2000X HD, foto 1Siglent Technologies SDS2000X HD, foto 2Siglent Technologies SDS2000X HD, foto 3Siglent Technologies SDS2000X HD, foto 4
Siglent Technologies SDS2000X HD
<< do kategorii << poprzedni następny >>

Pliki do pobrania:

specyfikacja

543o:5115,5116,5113,5117

Siglent Technologies SDS2000X HD - opis


Key Features:

    - 12-bit High Resolution
    - 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
    -  Front ends with 70 μVrms noise floor @ 500 MHz bandwidth and 0.5% DC gain accuracy
    - 4 analog channels, up to 350 MHz bandwidth (upgradable to 500 MHz)
    - SPO technology
    -  Waveform capture rate up to 100,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
    -   Supports 256-level intensity grading and color temperature display modes
    -  Up to 200 Mpts/ch record length
    - Digital trigger system
    - Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
    - Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
    - Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
    - History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
  - Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
    - 2 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
    - Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis
    - High Speed hardware-based Average, ERES; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
    - 16 digital channels (optional)
    - Built-in 25 MHz waveform generator
    - Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
    - Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
    - Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard



Ceny:

SDS2104X HD - 12 480,00 PLN netto

SDS2204X HD - 15 410,00 PLN netto

SDS2354X HD - 19 600,00 PLN netto
