Hipotronics Seria 700 - system do testów dielektrycznych

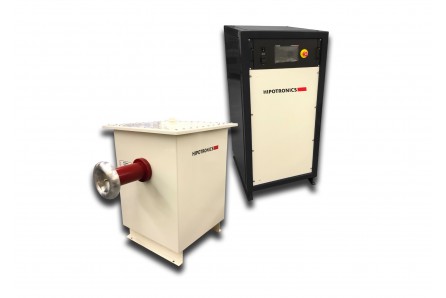

Hipotronics Seria 700 - system do testów dielektrycznych, foto 1Hipotronics Seria 700 - system do testów dielektrycznych, foto 2
Hipotronics Seria 700 - system do testów dielektrycznych
<< do kategorii << poprzedni następny >>

Pliki do pobrania:



Hipotronics Seria 700 - system do testów dielektrycznych - opis

AC Dielectric Test Systems

700 Series AC Dielectric Test SystemHipotronics standard line of AC dielectric testing equipment is designed to perform

high voltage AC tests on electrical apparatus in accordance with IEC60, IEEE 4 and IEC 270 and other national test

standards. A variety of mechanical configurations are available to suit different installation conditions. Some models can

be supplied in mobile versions for instances where it is difficult to move the test object to the test area. For any high

voltage AC test, Hipotronics can help decide and provide the appropriate dielectric testing equipment.


  •     Continuously adjustable output voltage
  •     Newly redesigned Auto & Manual Programmable Controller (see TS-PLC-AC)
  •     Designed to operate from 10% to 100% of the maximum rated output voltage
  •     Easily accessible meter for recalibration access
  •     Adjustable overload from 10 to 110% of rated output current
  •     Backup breaker overload safety
  •     Output connected voltmeter and ammeter
  •     Zero start interlock ensures that voltage control is at a minimum before HV can be energized
  •     Rated current available from zero to rated voltage


  •     Simple to use – minimal amount of setup time and intuitive control panel allows simple testing
  •     Surge-compensated HV transformer windings for withstanding flashovers at full voltage
  •     Output connected meters ensures for fast accurate readings
  •     Surge and transient protection on all meters, transformers etc.
  •     Partial discharge testing – low PD levels available at full output voltage (PD levels need to be specified whenordering system and may require additional components).


  •     Rotating Machines
  •     Sample Lengths of Cable
  •     Switchgear
  •     Insulating Material
  •     Instrument Transformers
  •     Connectors
  •     Transformers
  •     Capacitors
  •     Bushings
  •     Transmission Line Hardware
  •     Arrestors
  •     HV Components
