Hipotronics 880PL-HD Hipot DC

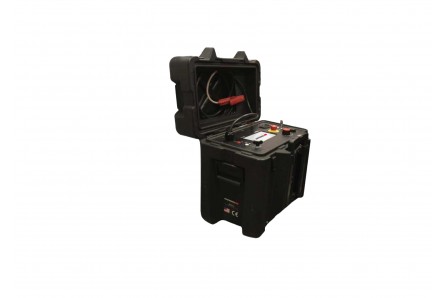

Hipotronics 880PL-HD Hipot DC, foto 1
Hipotronics 880PL-HD Hipot DC
<< do kategorii << poprzedni następny >>

Pliki do pobrania:



Hipotronics 880PL-HD Hipot DC - opis

The 800PL Series Hipot is a modern solution for testing the insulation strength of electrical apparatus. Outfitted with a state-of-the-art digital interface, and extensive safety features, this robust unit ensures simplistic operation, accurate results, and operator safety under all circumstances. And if a longer duty cycle is required, the 880PL-HD model is the perfect solution for your testing needs.

    DC hipot tests up to 40kV or 80kV at 10mA
    Lightweight, rugged design for field use with wheels
    Measures output voltage, leakage current, insulation resistance (IR), and polarization index (PI)
    Adjustable test parameters such as target voltage, maximum leakage, ramp rate, and dwell time
    Recorded test results and data transfer via USB 2.0
    7” color, touch screen display with adjustable brightness
    Safe operation with interlock and emergency stop
    Internal discharge solenoid
