Siglent Technologies SDS1000X-U

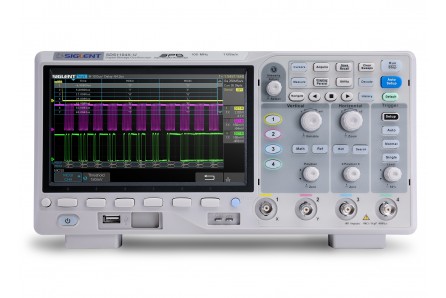

Siglent Technologies SDS1000X-U, foto 1Siglent Technologies SDS1000X-U, foto 2Siglent Technologies SDS1000X-U, foto 3
Siglent Technologies SDS1000X-U
<< do kategorii << poprzedni następny >>

Pliki do pobrania:



Siglent Technologies SDS1000X-U - opis

Key Features

    - 100 MHz bandwidth
    -  Real-time sampling rate up to 1 GSa/s
     - The newest generation of SPO technology
     -   Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
     -   Supports 256-level intensity grading and color temperature display modes
     -   Record length up to 14Mpts
     -   Digital trigger system
     -  Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
    - Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, CAN, LIN
    Video trigger, supports HDTV
    - 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
    - Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user
    - Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
   -  History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
    128 k pts FFT, supports Peaks and Markers
    - Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square
    - Large 7 inch TFT LCD display with 800 * 480 resolution
