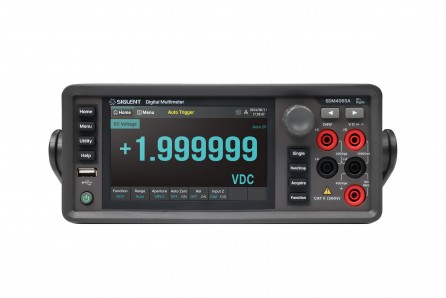

Siglent Technologies SDM4065A

Siglent Technologies SDM4065A, foto 1Siglent Technologies SDM4065A, foto 2Siglent Technologies SDM4065A, foto 3Siglent Technologies SDM4065A, foto 4Siglent Technologies SDM4065A, foto 5
Siglent Technologies SDM4065A
<< do kategorii << poprzedni następny >>

Pliki do pobrania:

specyfikacja

566o:5356,5354,5355,5353,5352

Siglent Technologies SDM4065A - opis

Product Overview

SIGLENT SDM4065A and SDM4065A-SC Digital Multimeters are a 6 ½ digit DMM (2,200,000 counts) incorporating a dual–display. The SDM4065A series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.

The SIGLENT SDM4065A-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

NOTE: The scanner is included on new SDM4065A-SC products only. It cannot be added to SDM4065A instruments at a later time.



Key Features

   -  Up to 50k rdgs/s of measurement speed
   -  4 display modes: numerical, bar meter, trend chart and histogram
   - 256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
   - Support standard SCPI remote control commands, equipped with EasyDMM-X host computer control and sampling software
   - Communications interface: USB Device (optional USB-GPIB adapter), USB Host, LAN
