Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz)

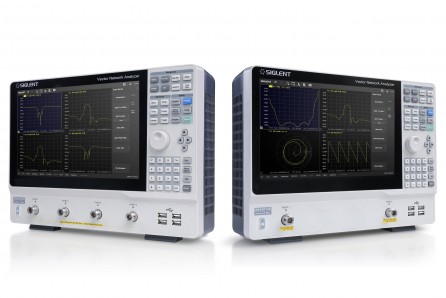

Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz), foto 1Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz), foto 2Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz), foto 3Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz), foto 4Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz), foto 5
Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz)
<< do kategorii << poprzedni następny >>

Pliki do pobrania:

specyfikacja techniczna

539o:5074,5073,5069,5071,5068

Siglent Technologies Wektorowy analizator sieci SNA5000A (9 kHz - 8.5 GHz) - opis

The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range of 9 kHz to 8.5 GHz, which support 2/4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements. The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.



Basic specification:
- Frequency range: 9 kHz - 8.5 GHz
- Frequency resolution: 1 Hz
- Level resolution: 0.05 dB
- Range of IFBW: 10 Hz~3 MHz
- Setting range of output level: -55 dBm ~ +10 dBm
- Dynamic range: 125 dB
- Types of calibration: Response calibration, Enhanced Response calibration, Full-one port
calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
- Types of measurement: Scattering-parameter measurement, differential-parameter measurement,
receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion
- SupportSupport Support Bias-Tees
- Interface: LAN, USB Device, USB Host(USB-GPIB)
- Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer
- 12.1-inch touch screen
- Video output: HDMI
